Goes-West 18 Fire Temperature RGB Extra Large Satellite
Current UTC Time =
About Fire Temperature RGB

Fire Temperature RGB allows the user to identify where the most intense fires are occurring and differentiate these from "cooler" fires. The RGB takes advantage of the fact that from 3.9µm to shorter wavelengths, background solar radiation and surface reflectance increases. This means that fires need to be more intense in order to be detected by the 2.2 and 1.6µm bands, as more intense fires emit more radiation at these wavelengths. Therefore, small/"cool" fires will only show up at 3.9µm and appear red while increases in fire intensity cause greater contributions of the other channels resulting in white very intense fires.

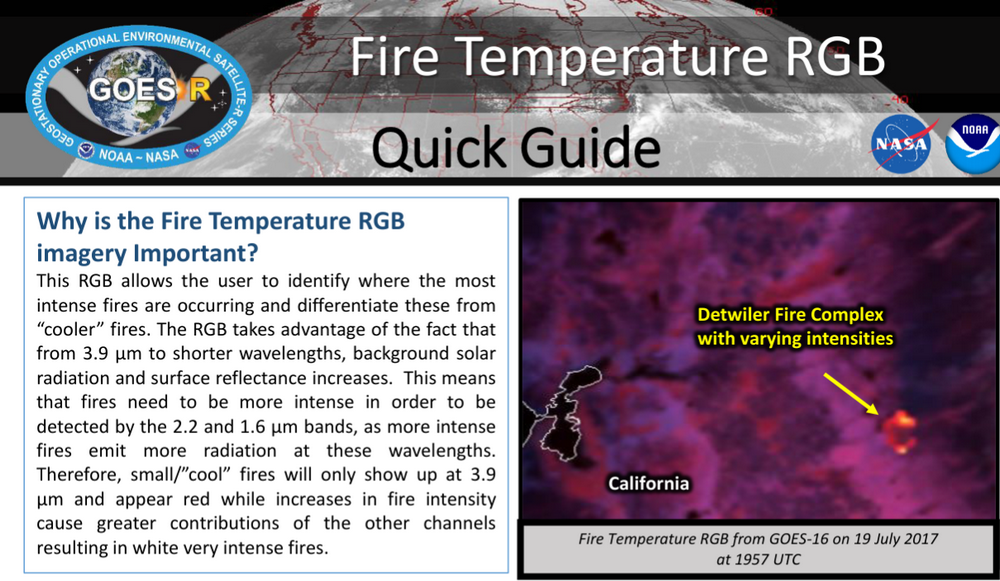

Fire Graphic

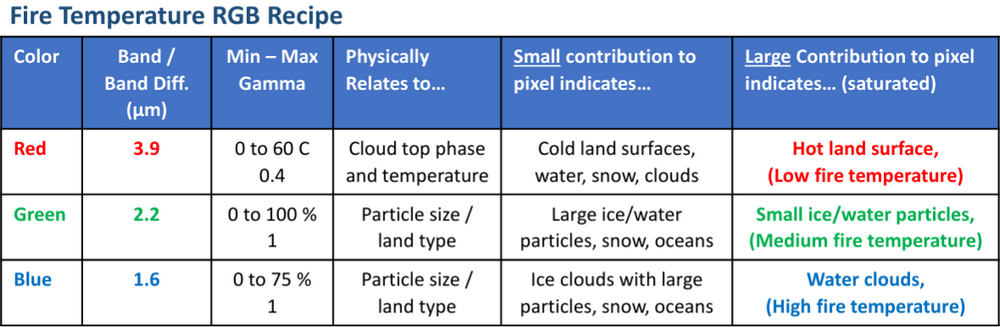

Fire - Red, Green, Blue Graphic

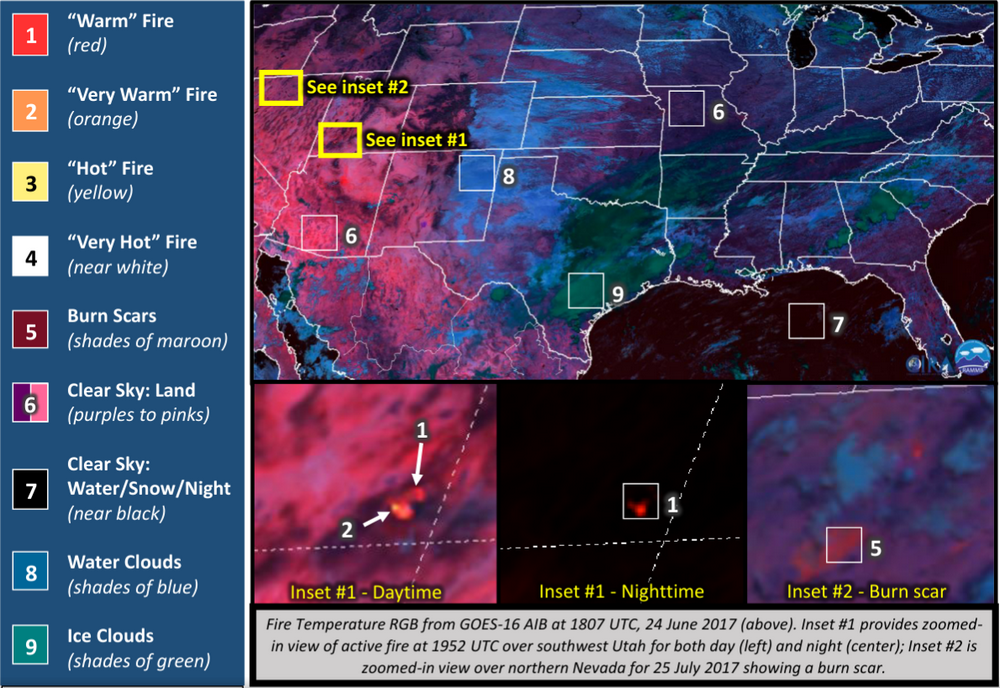

Fire Limitations Graphic

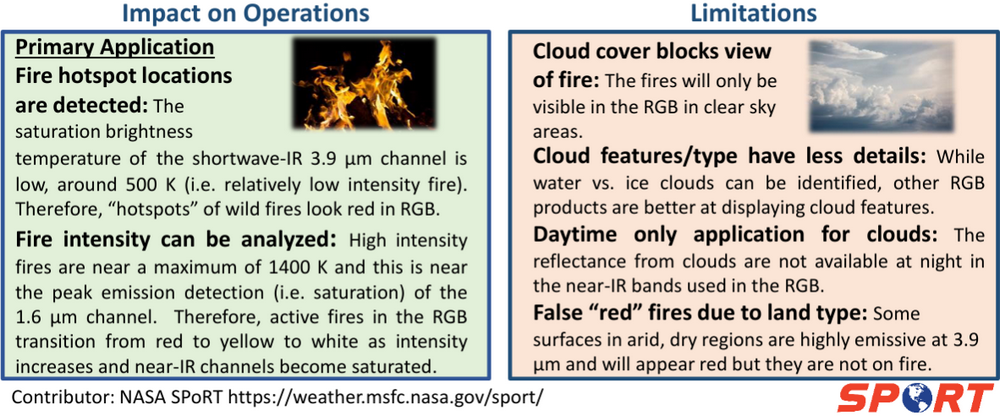

Fire Limitations Graphic
Fire Limitations Graphic
